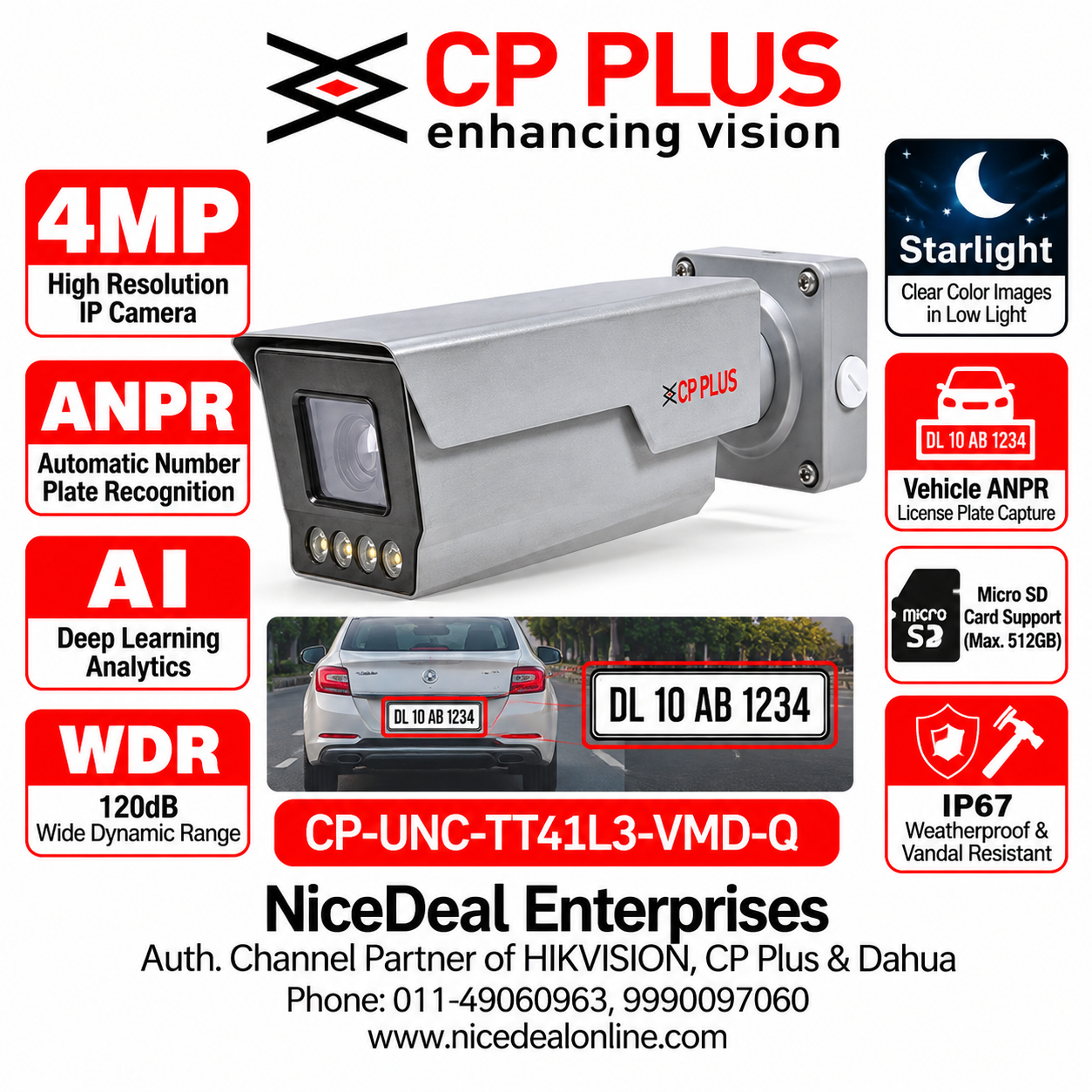

CP-UNC-TT41L3-VM
4MP IR AI Enforcement Camera
- 1/1.8" 4 MP starlight CMOS sensor (1.411 cm)
- H.265 and H.264 dual codec
- Maximum Resolution: 2688 × 1520@25/30fps
- Built-in 10mm~50mm lens
- The maximum illumination distance is 30 Mtr
- IP67 Rated
- One Year Warranty.
| Image Sensor | 1/1.8'' CMOS (1.411 cm) |
| Processor | High-performance embedded processor |
| Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Iris | Fixed iris/manual iris/auto iris/P iris |
| Effective Pixels | 2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels |
| Frame Rate | Main stream (2688 × 1520@25/30fps), (1920 x 1080@50/60fps) Sub stream (1600 × 1200@25/30fps) |
| S/N Ratio | >56dB |
| Resolution | 4M (2688 × 1520)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288) |
| Back Light Compensation | (Auto BLC/ HLC/ WDR (90dB) |
| Lens | 10mm–50mm Motorized |
| Max Aperture | Max. F1.33 |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Angle of View | Horizontal: 9.4°–40.8° Vertical: 5.4°–22.9° Diagonal: 10.7°–46.9° |
| Bit Rate | H.264: 32kbps–32767kbps; H.265: 32kbps–32767kbps; MJPEG: 512kbps–32767kbps |
| White Balance | Auto; Manual; Outdoor; Natural; Street Lamp; Partial white balance |
| Audio Input | 1 Ch. |
| Audio Output | 1 Ch. |
| Alarm IN | 3 channels |
| Alarm Out | 2 channels. 1 for relay, and 1 for optocoupler |
| ANPR | Adopts CP Plus developed algorithms to recognize license plate numbers and letters |
| Vehicle Logo Recognizing | Acura; Alfaromeo; Ashok leyland; Astonmartin; Audi; Baic; Bently; Benz; BMW; Buick; BYD; Cadillac; Chery; Chevrolet; Chrysler; Citroen; Dacia; Daihatsu; Datsun; Dodge; DS; Ferrari; Fiat; Force; Ford; Foton; Geely; GMC; Greatwall; Hino; Honda; Hyundai; Infiniti; Isuzu; Iveco; Jac; Jaguar; Jeep; Kia; Kinglong; Land; Lexus; Lifan; Lincoln; Mahindra; MAN; Maserati; Mazda; Mercury; MG; Mini; Mitsubishi; Nissan; Opel; Peugeot; Porsche; Renault; Rollsroyce; Saab; Scania; Seat; Skoda; Smart; Subaru; Suzuki; Tata; Tesla; Toyota; UD; Volkswagen; Volvo |
| SDK and API | Yes |
| Alarm Event | Storage full, storage error, external alarm, no storage space, license plate blocklist, illegal access, and security fault |
| IR | 23 m–30 m (75.46 ft–98.43 ft) (adjustable brightness) |
| Micro SD | 1, supports maximum 256GB SD card local storage |
| Ethernet | 1 × RJ-45 Ethernet port, 10/100/1000 M network transmission |
| Weatherproof Standard | IP67 |
| Operating Temperature | -40°C to +65°C (−40°F to +149°F) |
| Humidity | 10%–90% |
| Storage Temperature | -40 °C to +65 °C (–40 °F to +149 °F) |
| Power Source | 12–36 VDC, PoE |
| Power Consumption | ≤ 13W |
| Dimension | 466.4 mm × 135.8 mm × 134.1 mm (L × W × H) |
| Weight | 3.9 kg |
CP Plus Pro IP 4mp ANPR AI Enforcement CameraCamera (CP-UNC-TT41L3-VM)
SKU: CP-UNC-TT41L3-VM
₹54,500.00Price
Sales Tax Included
Lead time 15 days after cleared payment.
One Year Off-Site Warranty!
Provide GST Bill to avail warranty services.We sell only genuine product in Brand New Condition (sealed pack). There is no Refund, only warranty is available.
