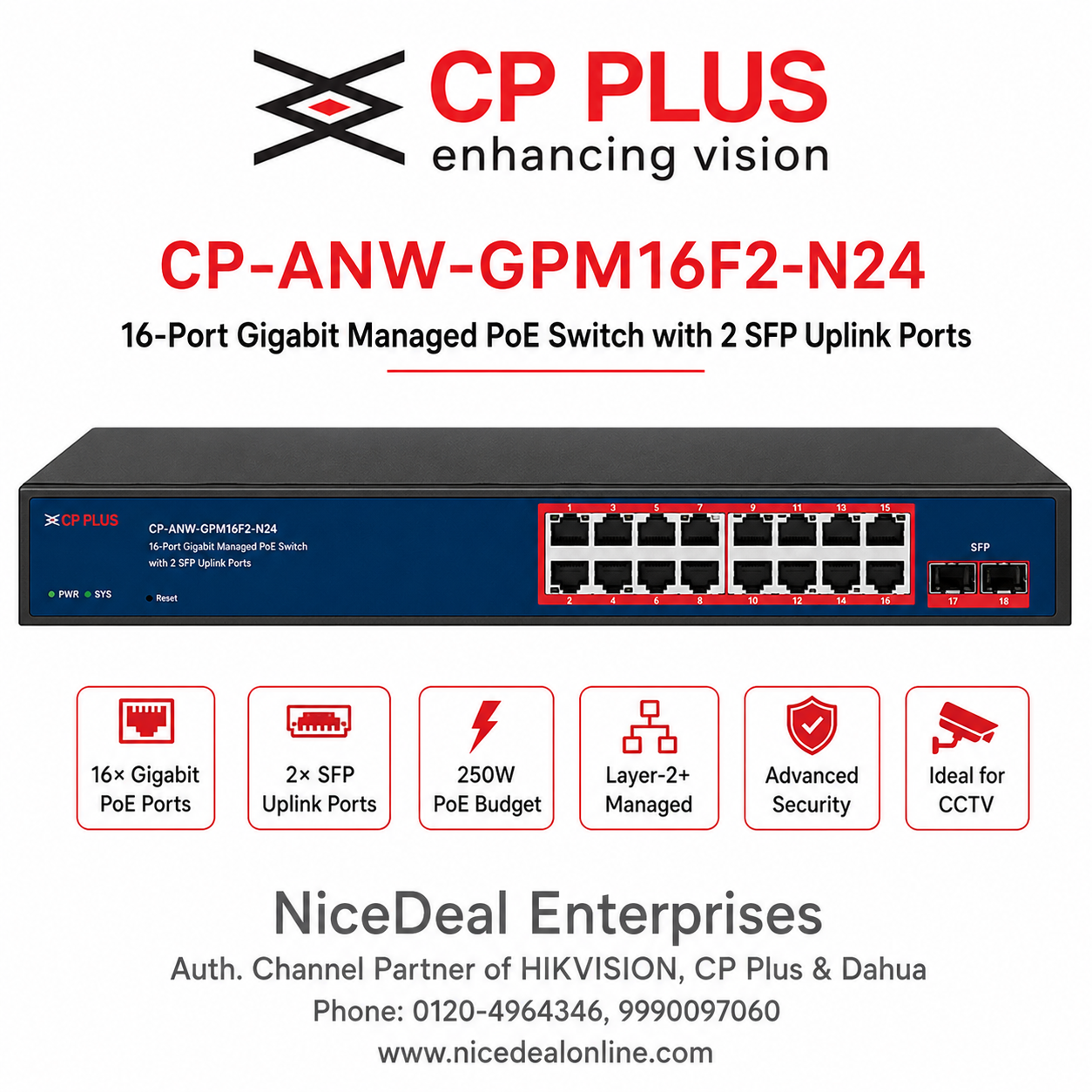

CP-ANW-GPM16F2-N24 is a professional Layer-2+ Managed Gigabit PoE Switch designed for IP CCTV surveillance, enterprise networking, and other PoE-based applications. It provides 16 Gigabit PoE+ RJ45 ports and 2 × 1000 Mbps SFP fiber uplink ports, making it ideal for centralized connectivity of IP cameras, NVRs, access points, and other network devices.
Key Features
16 × 10/100/1000 Mbps Gigabit RJ45 PoE Ports
2 × 1000 Mbps SFP Fiber Uplink Ports
IEEE 802.3af / 802.3at PoE Support
Up to 250W PoE Power Budget
Layer-2+ Managed Switch
36 Gbps Switching Capacity
26.784 Mpps Forwarding Rate
8K MAC Address Table
10 KB Jumbo Frame
4.1 Mbit Packet Buffer
PoE Watchdog Function
VLAN, QoS, ACL & Port Mirroring
LACP Link Aggregation
STP / RSTP / MSTP Support
DHCP Snooping & IP Source Guard
Storm Control & DoS Prevention
SNMP Management
HTTPS / SSH Management
IPv6 Support
Rack-Mount Design
Technical Specifications
Parameter
Specification
Model
CP-ANW-GPM16F2-N24
Product Type
16-Port Managed PoE Switch
PoE Ports
16 × RJ45 Gigabit PoE
Network Speed
10/100/1000 Mbps
SFP Uplink
2 × 1000 Mbps SFP
Console Port
1 × Console Port
PoE Standard
IEEE 802.3af / 802.3at
PoE Power Budget
Up to 250W
Switching Capacity
36 Gbps
Forwarding Rate
26.784 Mpps
MAC Address Table
8K
Packet Buffer
4.1 Mbit
Jumbo Frame
10 KB
Forwarding Mode
Store-and-Forward
Power Supply
AC 100–240V, 50/60Hz
Dimensions
440 × 190 × 44.5 mm
Weight
Approx. 2.7 kg
Operating Temperature
0°C to 45°C
Operating Humidity
10%–90% RH, Non-Condensing
Storage Temperature
-40°C to 70°C
Storage Humidity
5%–95% RH
Advanced Networking Features
The switch supports advanced networking functions including:
Surveillance VLAN
Voice VLAN
802.1Q VLAN
QinQ
GVRP
MAC-Based VLAN
Protocol-Based VLAN
IGMP Snooping
MLD Snooping
Link Aggregation
STP / RSTP / MSTP
Loop Detection
QoS & Traffic Management
For efficient network traffic management, the switch supports:
WRR
WFQ
Strict Priority
Hybrid Scheduling
Port-Based QoS
802.1p Priority
IP TOS
IP DSCP
Ingress/Egress Rate Limiting
Security Features
The CP-ANW-GPM16F2-N24 provides multiple network security mechanisms:
IEEE 802.1X Authentication
MAC Authentication
Web Authentication
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard
IP/MAC/Port Binding
Port Isolation
BPDU Guard
Storm Control
DoS Prevention
Management VLAN
Management ACL
SSL/HTTPS
SSH
RADIUS / TACACS+ Support
CCTV & Surveillance Applications
The switch is suitable for professional IP surveillance installations such as:
IP CCTV Camera Networks
NVR & VMS-Based Surveillance
Industrial CCTV Systems
Factory & Warehouse Surveillance
Commercial Buildings
Educational Campuses
Hospitals & Institutions
Large Residential Projects
AI Video Analytics Systems
Centralized CCTV Monitoring
Fiber-Connected Remote CCTV Locations
PoE Watchdog
The built-in PoE Watchdog functionality helps monitor connected PoE devices and supports reliable operation of devices such as IP cameras by detecting abnormal device conditions and assisting with automatic recovery.
Ideal for AI CCTV Infrastructure
With 16 Gigabit PoE ports, 2 × SFP uplinks, 250W PoE capacity, managed networking, VLAN support, and PoE Watchdog, the CP-ANW-GPM16F2-N24 is well suited for AI Video Analytics and professional CCTV infrastructure, where stable connectivity and centralized network management are important.
Product: CP PLUS CP-ANW-GPM16F2-N24
Category: Managed Gigabit PoE Switch
PoE Ports: 16
Uplink: 2 × 1000 Mbps SFP
PoE Budget: Up to 250W
